High-pressure cleaners HDS 8/18-4 C

The three-phase HDS 8/18-4 C is the most powerful hot water high-pressure cleaner in the Compact class and features a 4-pole, water-cooled electric motor and eco!efficiency mode.

Delivery : SKU# : 1.174-918.0

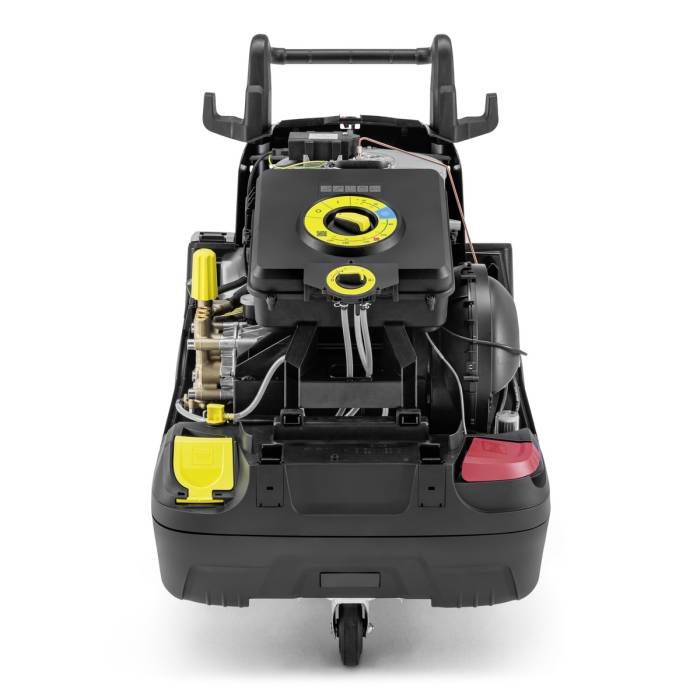

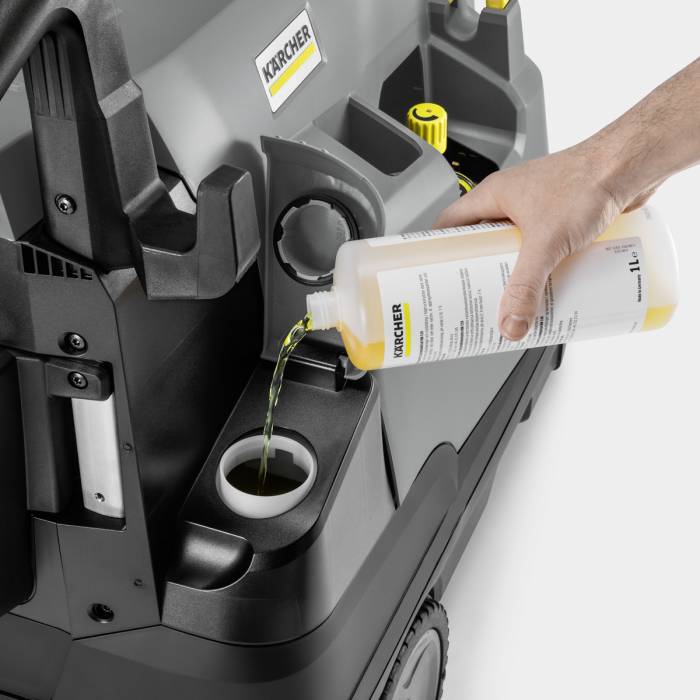

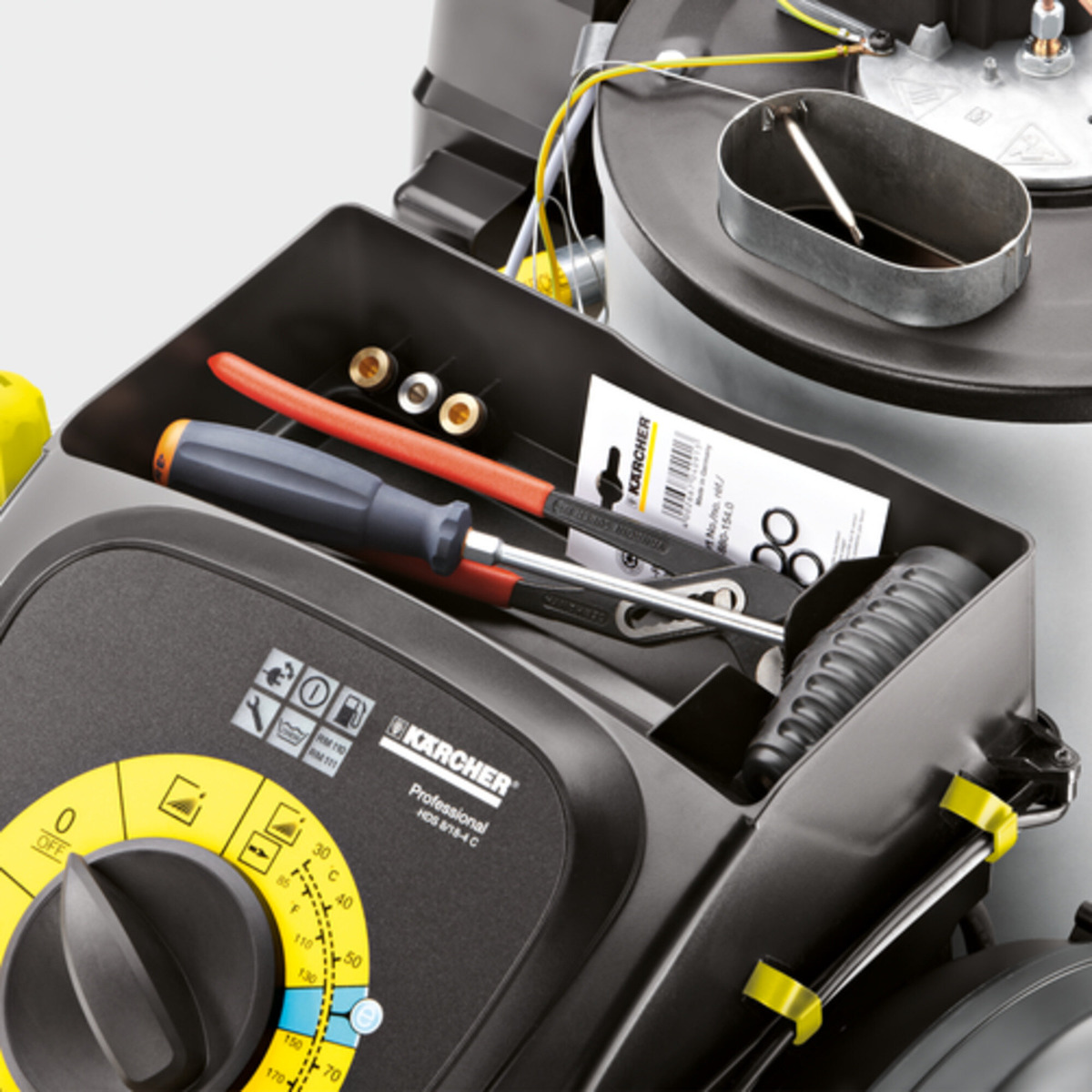

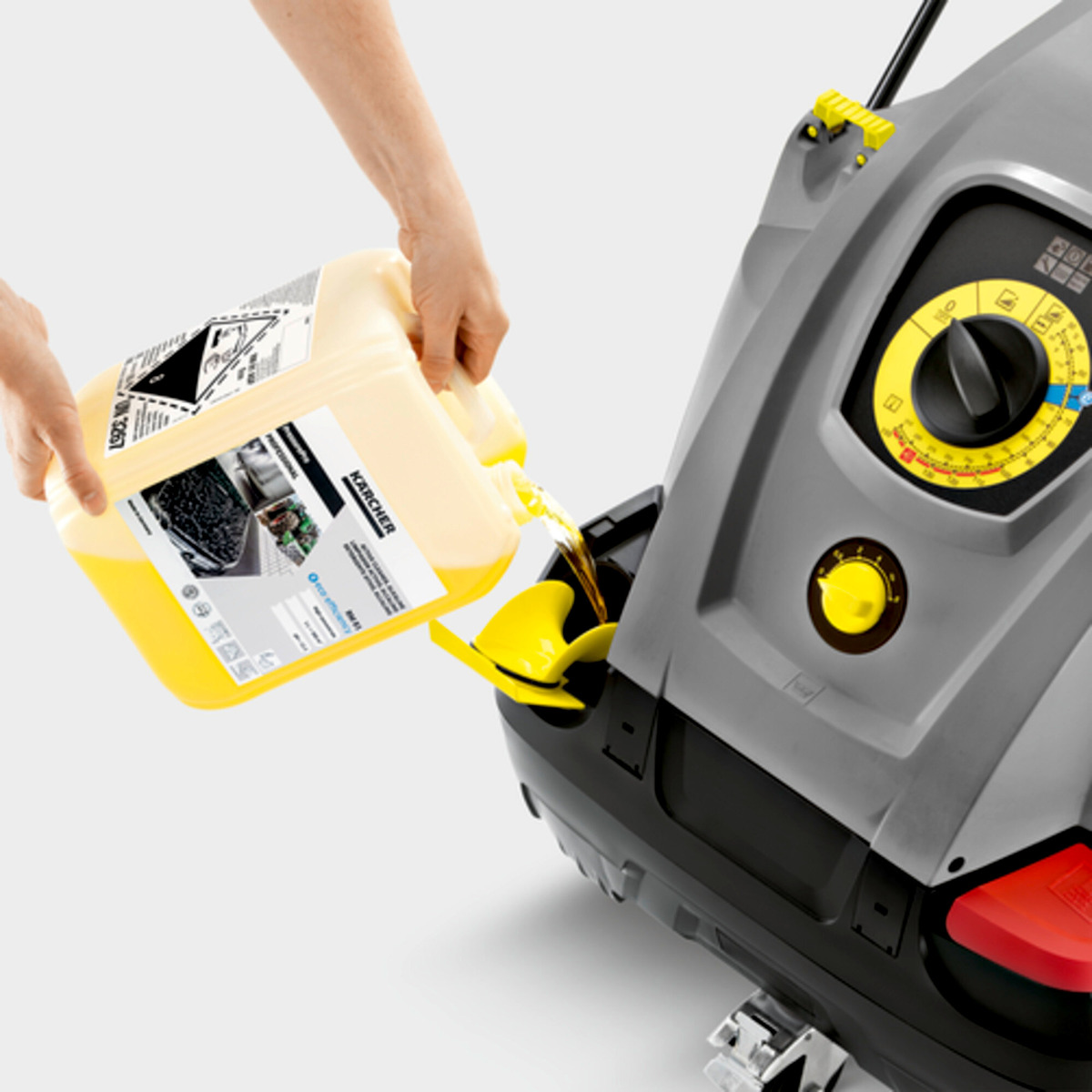

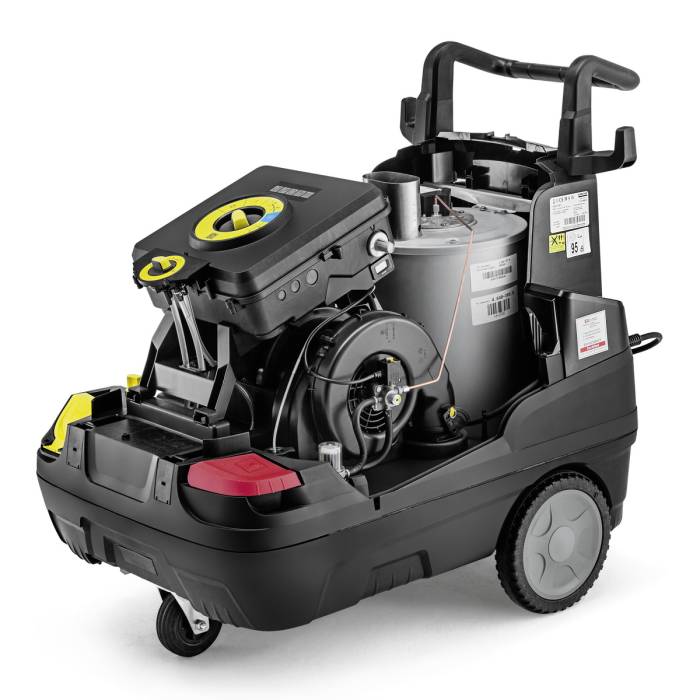

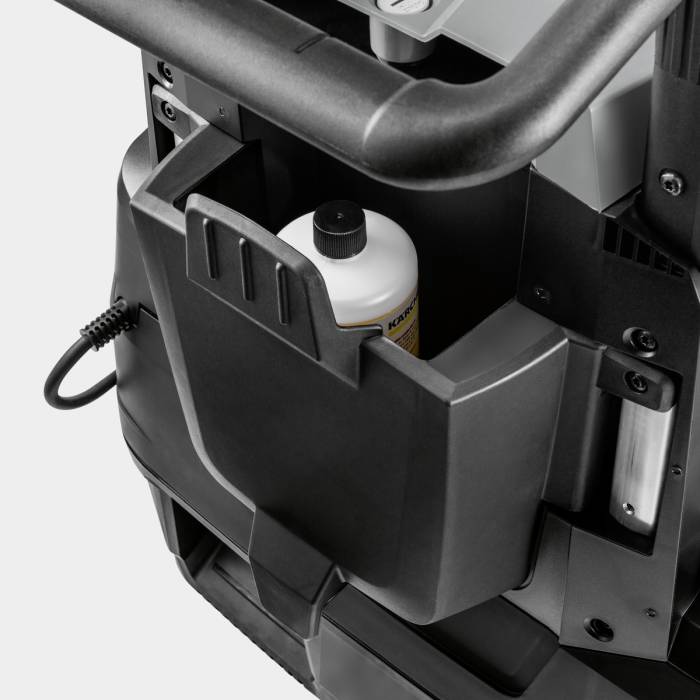

The most powerful 3-phase hot water high-pressure cleaner in the compact class: the HDS 8/18-4 C with eco!efficiency and steam stage impresses with its ergonomics and user-friendliness. Its powerful 4-pole motor is water-cooled. A robust axial pump with three ceramic pistons builds up high pressure. The EASY!Force Advanced high-pressure gun with servo control for easy adjustment of pressure and water flow, patented nozzle technology and EASY!Lock quick-release fasteners makes for ergonomic work. The Soft Damping System (SDS) reduces vibrations. The hot water technology effectively breaks up even lubricants and reduces the use of detergents, which are precisely dosed from a 15.5-litre tank. The maintenance-friendly HDS 8/18-4 C is designed for daily use under hard conditions. The descaling option, a water filter and a safety valve protect the technology. A robust chassis protects against impacts, while large wheels and a steering roller/castor offer high manoeuvrability. There are integrated storage possibilities for accessories.

Features and benefits

Specifications

Technical data

Feature Specification
3 / 400 / 50 Power supply (Ph/V/Hz)
300 - 800 Flow rate (l/h)
30 - 180 / 3 - 18 Working pressure (bar/MPa)
220 Max. pressure (bar)
min. 80 - max. 155 Temperature (for supply 12 °C) (°C)
6 Connected load (kW)
5,2 Consumption of fuel oil at full load (kg/h)
4,2 Consumption of heating oil in eco!efficiency mode (kg/h)
5 Power cable (m)
025 Nozzle size
15 Fuel tank (l)
119,4 Weight (with accessories) (kg)
131,2 Weight incl. packaging (kg)
1066 x 650 x 920 Dimensions (L × W × H) (mm)

Equipment

  • Spray gun: EASY!Force Advanced
  • Spray lance: 1050 mm
  • Power nozzle
  • Servo Control
  • High-pressure hose length: 10 m
  • High-pressure hose specification: DN 6, 250 bar
  • Soft Damping System (SDS)
  • Pressure cut-off
  • Integrated fuel and detergent tank
