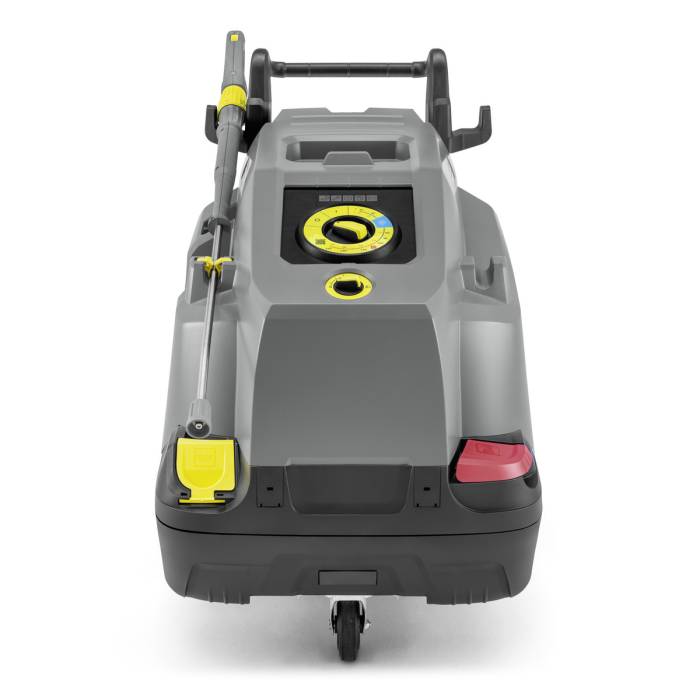

High-pressure cleaners HDS 8/18-4 C

The three-phase HDS 8/18-4 C is the most powerful hot water high-pressure cleaner in the Compact class and features a 4-pole, water-cooled electric motor and eco!efficiency mode.

Delivery : SKU# : 1.174-918.0
Compare

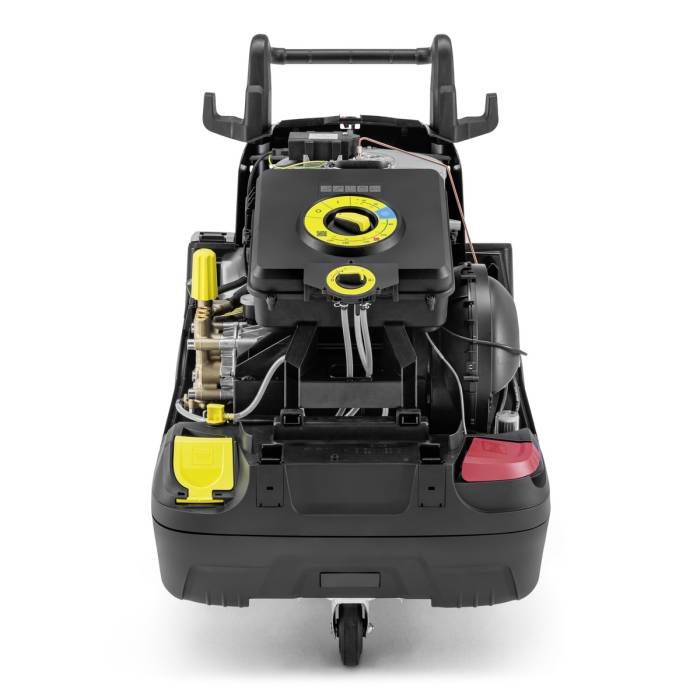

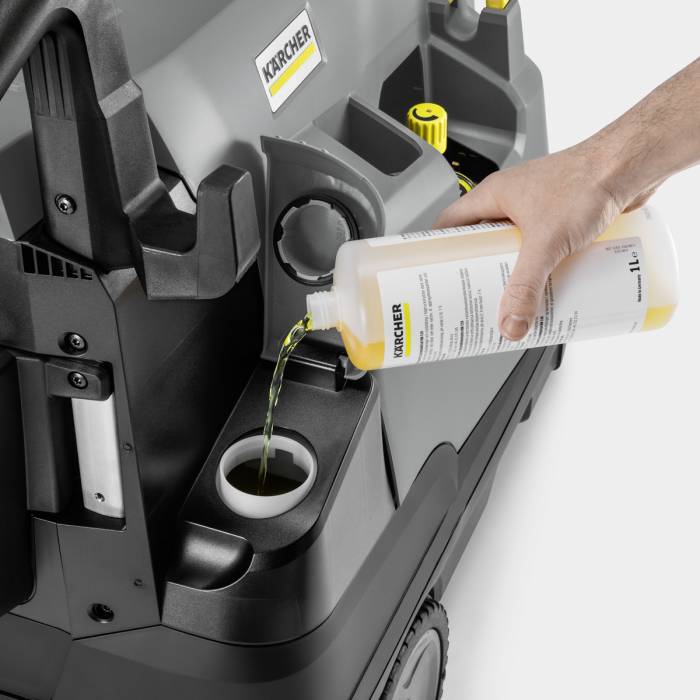

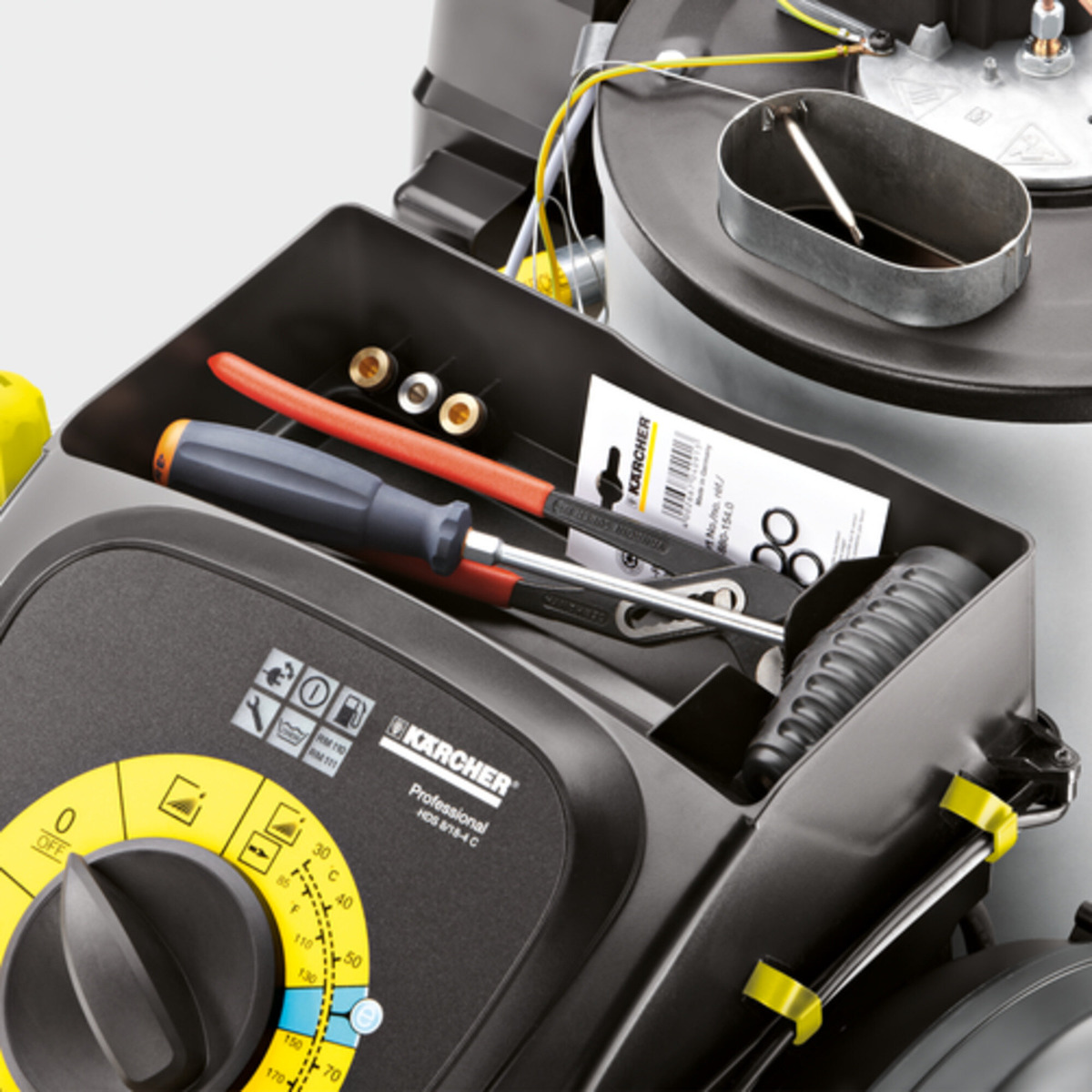

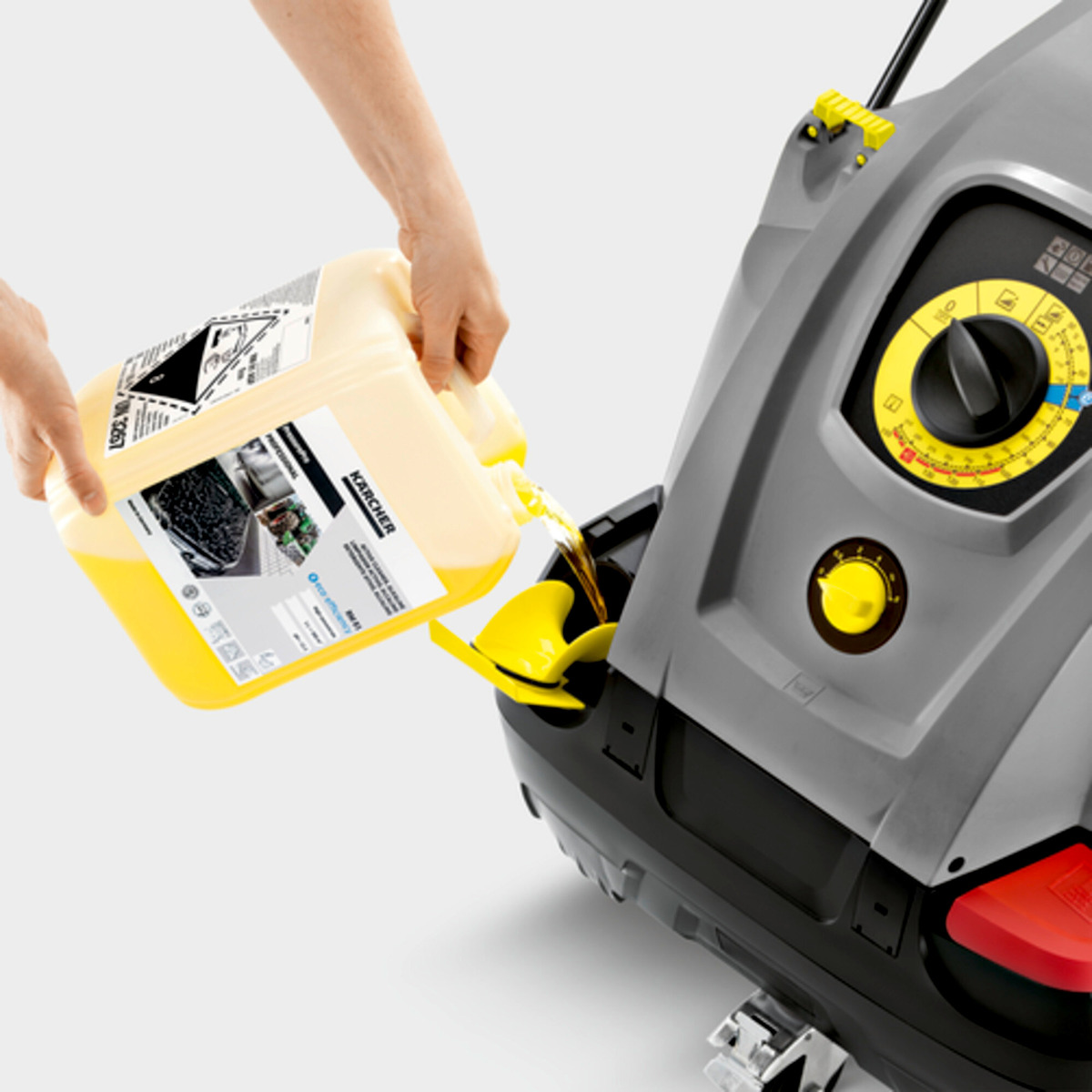

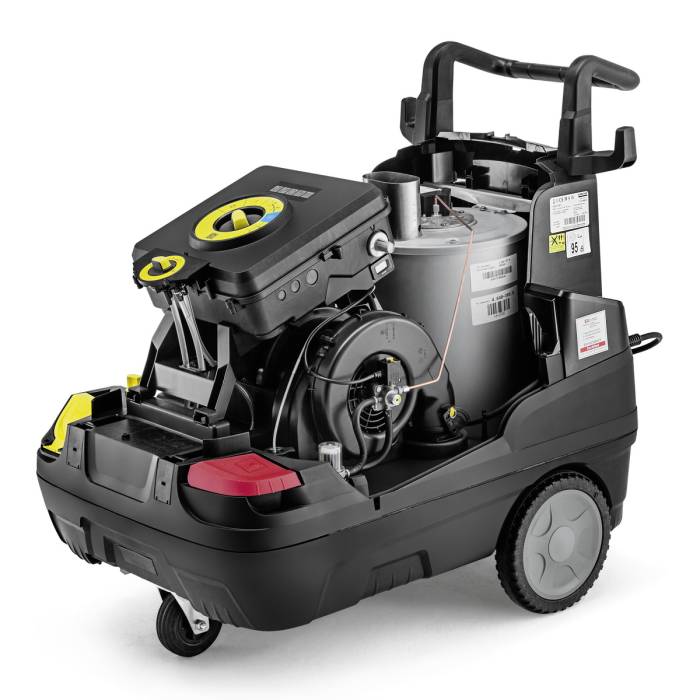

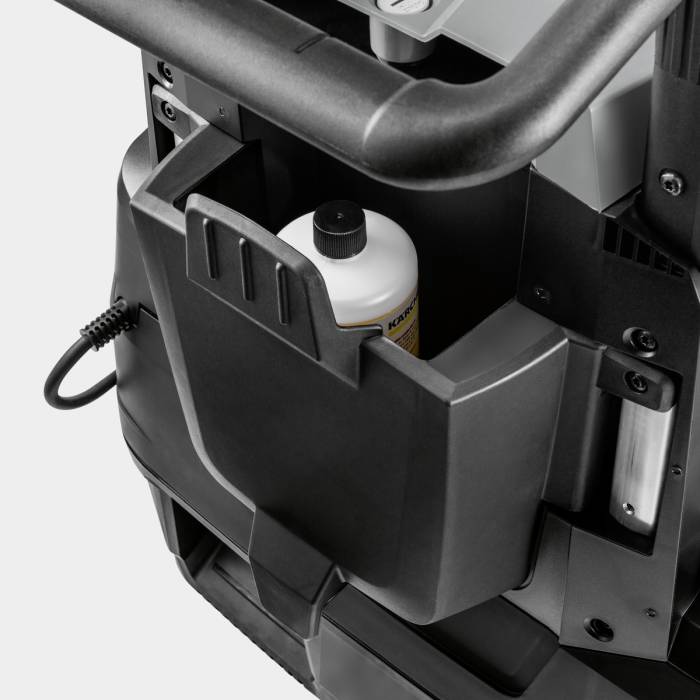

The most powerful 3-phase hot water high-pressure cleaner in the compact class: the HDS 8/18-4 C with eco!efficiency and steam stage impresses with its ergonomics and user-friendliness. Its powerful 4-pole motor is water-cooled. A robust axial pump with three ceramic pistons builds up high pressure. The EASY!Force Advanced high-pressure gun with servo control for easy adjustment of pressure and water flow, patented nozzle technology and EASY!Lock quick-release fasteners makes for ergonomic work. The Soft Damping System (SDS) reduces vibrations. The hot water technology effectively breaks up even lubricants and reduces the use of detergents, which are precisely dosed from a 15.5-litre tank. The maintenance-friendly HDS 8/18-4 C is designed for daily use under hard conditions. The descaling option, a water filter and a safety valve protect the technology. A robust chassis protects against impacts, while large wheels and a steering roller/castor offer high manoeuvrability. There are integrated storage possibilities for accessories.

Features and benefits

Specifications

Technical data

FeatureSpecification
3 / 400 / 50Power supply (Ph/V/Hz)
300 - 800Flow rate (l/h)
30 - 180 / 3 - 18Working pressure (bar/MPa)
220Max. pressure (bar)
min. 80 - max. 155Temperature (for supply 12 °C) (°C)
6Connected load (kW)
5,2Consumption of fuel oil at full load (kg/h)
4,2Consumption of heating oil in eco!efficiency mode (kg/h)
5Power cable (m)
025Nozzle size
15Fuel tank (l)
119,4Weight (with accessories) (kg)
131,2Weight incl. packaging (kg)
1066 x 650 x 920Dimensions (L × W × H) (mm)

Equipment

  • Spray gun: EASY!Force Advanced
  • Spray lance: 1050 mm
  • Power nozzle
  • Servo Control
  • High-pressure hose length: 10 m
  • High-pressure hose specification: DN 6, 250 bar
  • Soft Damping System (SDS)
  • Pressure cut-off
  • Integrated fuel and detergent tank
