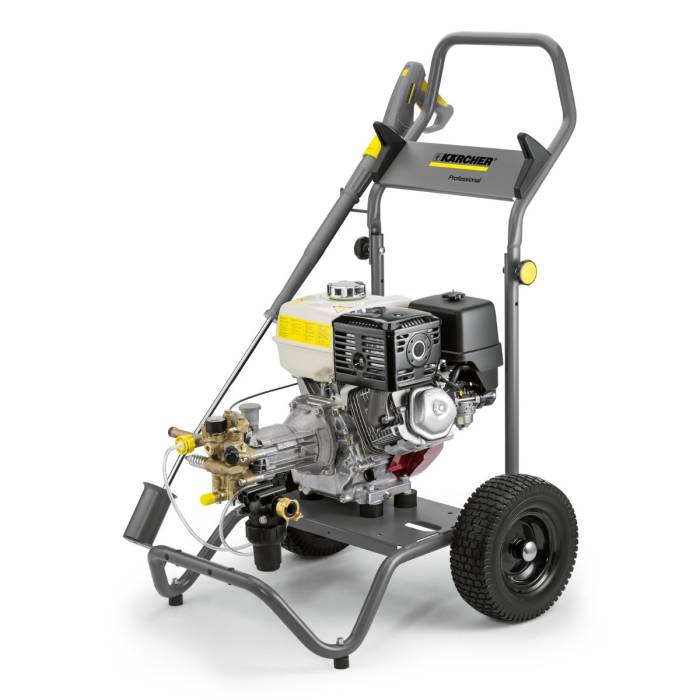

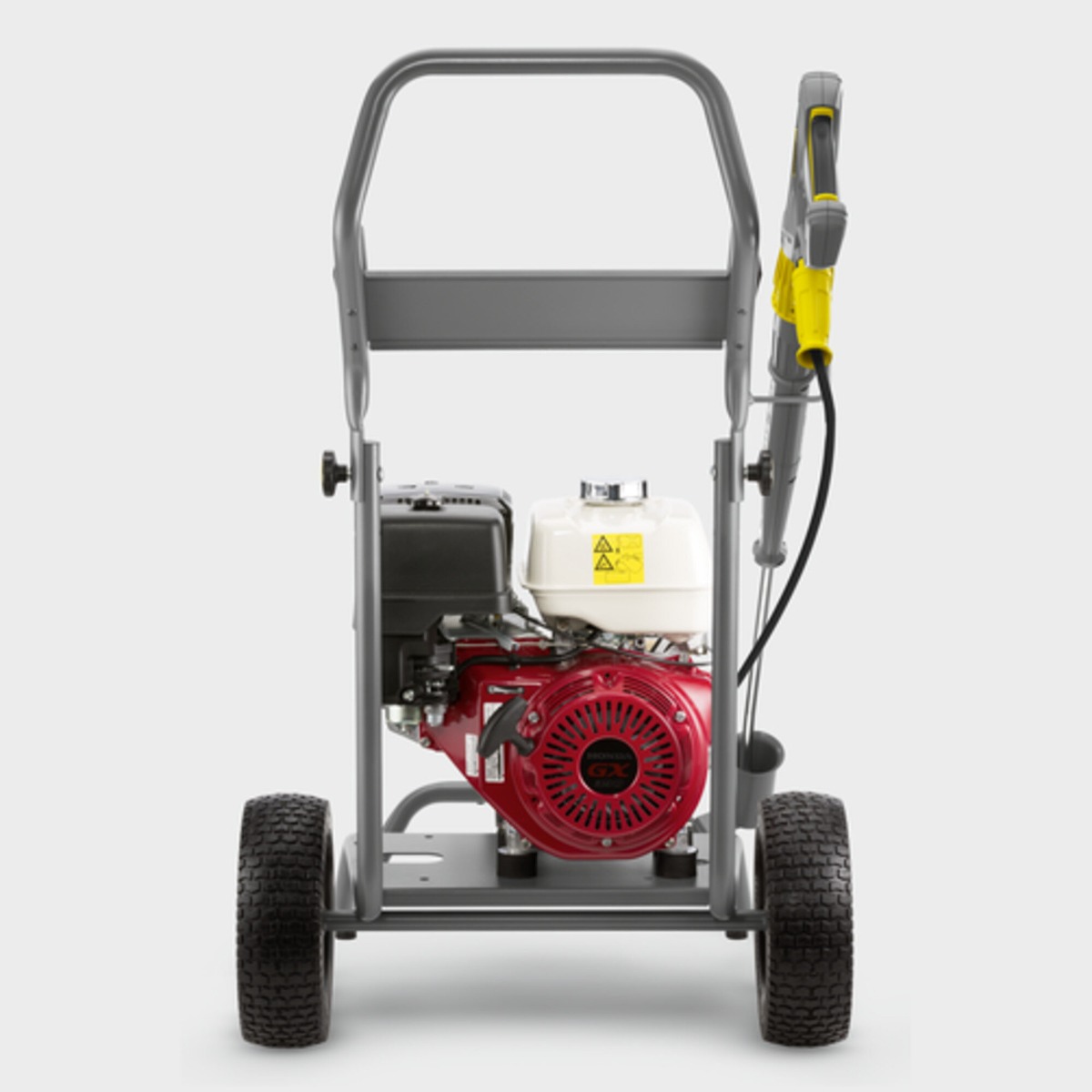

High-pressure washer HD 9/23 G

With the HD 9/23 G petrol-powered cold water high-pressure cleaner with Honda petrol engine, you can work independently and conveniently while staying mobile – even under adverse external conditions.

Delivery : SKU# : 1.187-906.0

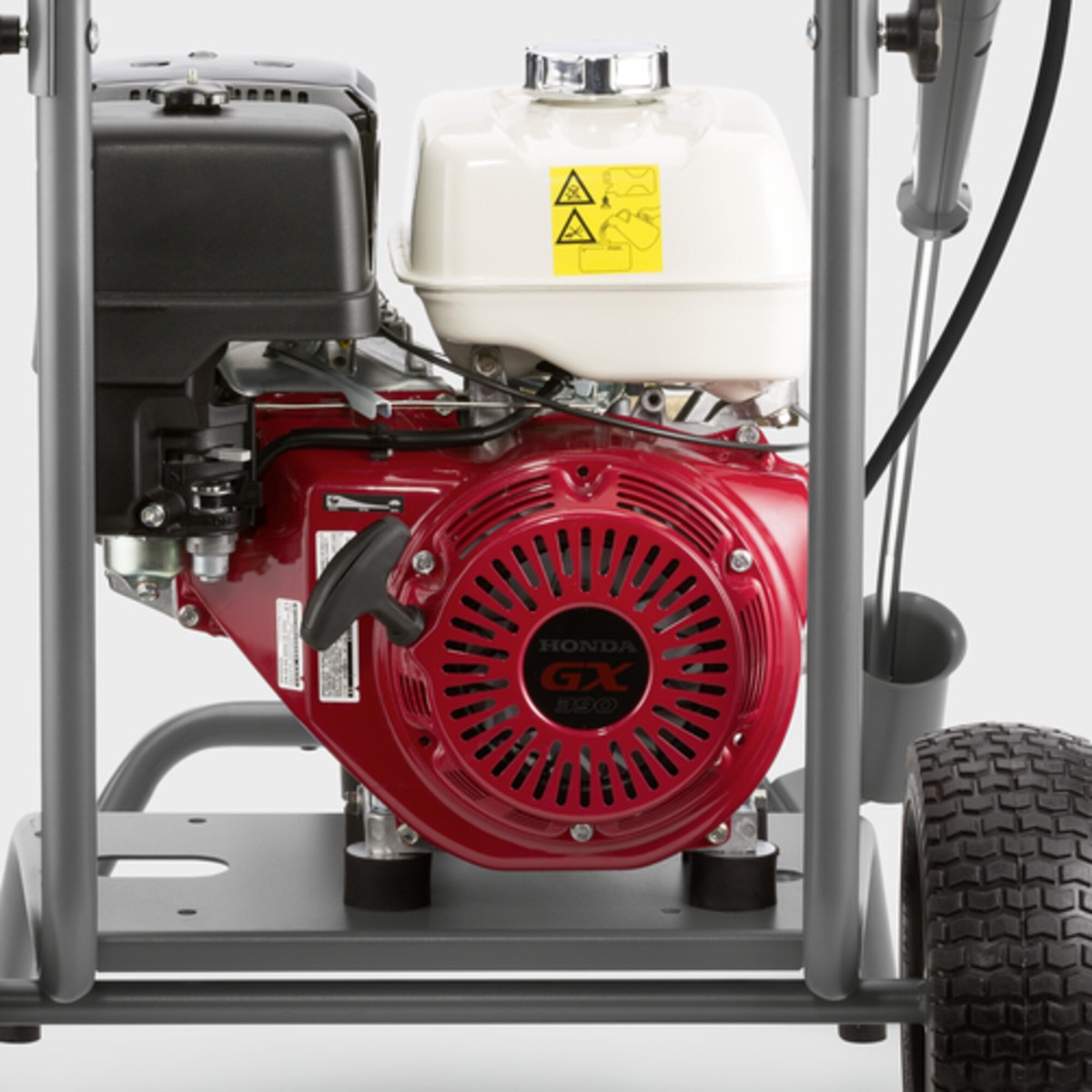

Fitted with a Honda petrol engine, the HD 9/23 G cold water high-pressure cleaner works completely independently of the power connection. Developed for the best cleaning results – thanks to a water pressure of 230 bar – and protected by a very robust basic frame, the machine impresses even under extreme conditions. The ergonomic frame concept offers maximum mobility, even on uneven surfaces. Puncture-proof wheels, the successful operating concept and a range of storage possibilities for accessories make the machine very convenient to use. Other convenient features include the EASY!Force high-pressure gun, which makes use of the recoil force of the high-pressure jet to reduce the holding force for the operator to zero, and the EASY!Lock quick-release fasteners, which make set-up and dismantling five times faster than with conventional screw connections. The powerful pump enables the removal of water from lakes or ponds in an emergency. It is protected by a large water filter and a thermostat valve which prevents it from overheating in recirculation mode. Also available for the HD 9/23 G is a cage frame with eyelets to facilitate crane loading, as well as an attachment kit for a hose reel.

Features and benefits

Maximum independence

Fitted with reliable Honda or Yanmar engines for use without an external power supply. Can suck up water – e.g. from lakes or ponds – and use it for cleaning.

Optimum ease of use

The ergonomic frame concept makes transport on uneven ground easier. Storage possibilities for all accessory parts directly on the machine. Puncture-proof wheels guarantee permanently high mobility.

Highly versatile

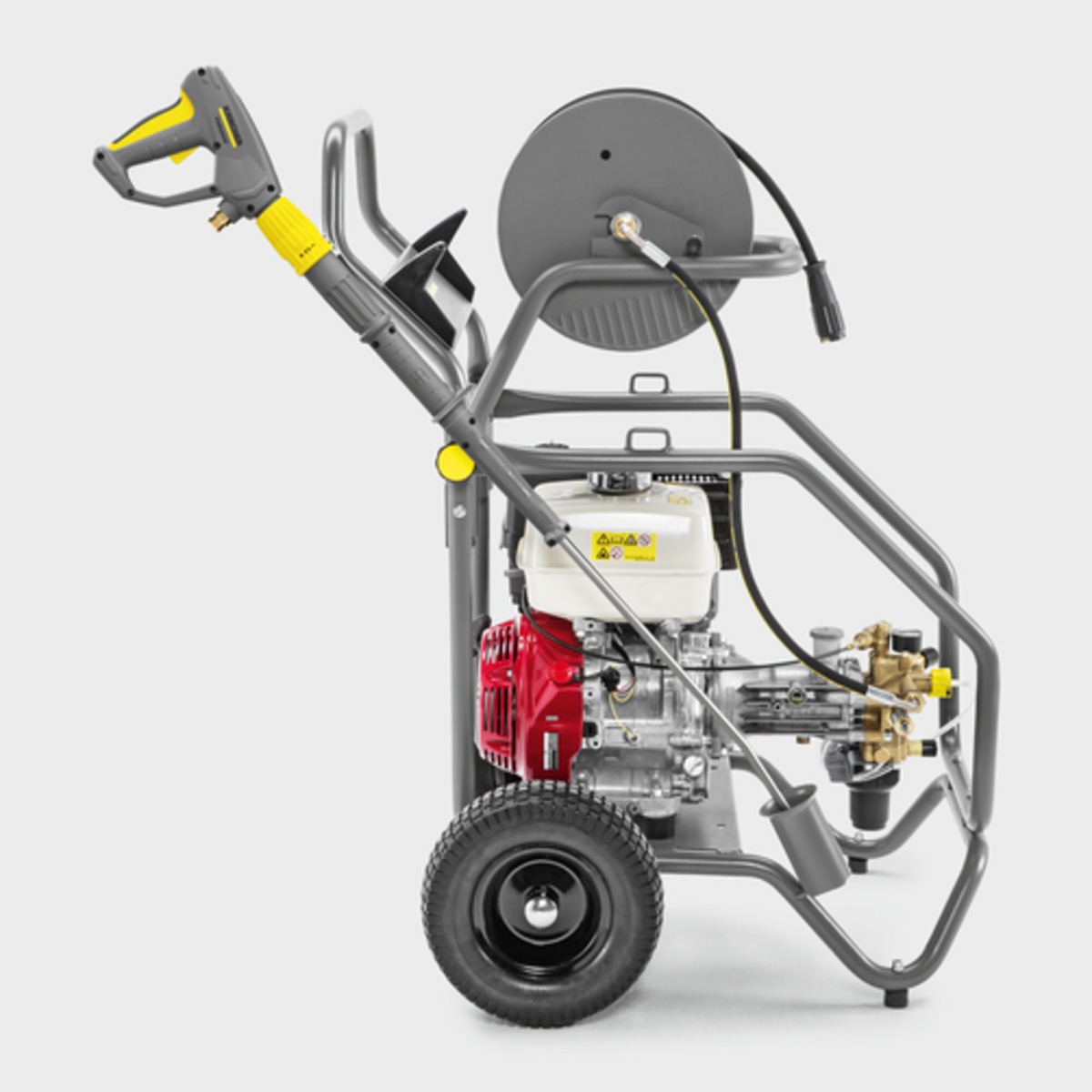

Optional cage frame with eyelets for crane loading reliably protects the machine. Hose reel attachment kit for shorter set-up & finishing-off times available as an optional extra. Portable version with robust tubular frame specially designed for painters and plasterers (HD 728 B).
For the toughest jobs
  • Robust basic frame for daily use in tough conditions.
  • Large water filter to protect the pump.
  • Thermostat valve to protect the pump from overheating in recirculation mode.

Specifications

Technical data

Feature Specification
1 / 230 / 50 Supply Voltage (Ph/V/Hz)
400 - 930 Flow Rate (l/h)
60 Inlet Temperature (°C)
40 - up to 230 / 4 - up to 23 Working Pressure (bar/MPa)
270 / 27 Max Pressure (bar/MPa)
2.5 Connected Load (kW)
5 Power Cable (m)
35 Nozzle Size (mm)
1″ Water Inlet
Petrol Drive Type
Honda Motor Manufacturer
GX 390 Motor Type
1 Number of Simultaneous Users
Cart Portability
Anthracite Color
75.5 Weight (with Accessories) (kg)
82.8 Weight incl. Packaging (kg)
866 x 722 x 1146 Dimensions (L x W x H) (mm)

Equipment

  • Spray gun: EASY!Force Advanced
  • High-pressure hose: 15 m, Premium quality, ID 8, 315 bar
  • Power nozzle
  • Servo control
  • Infinitely variable pressure and water flow regulation
  • Cleaning agent function: Suction
  • Detergent function: Suction
